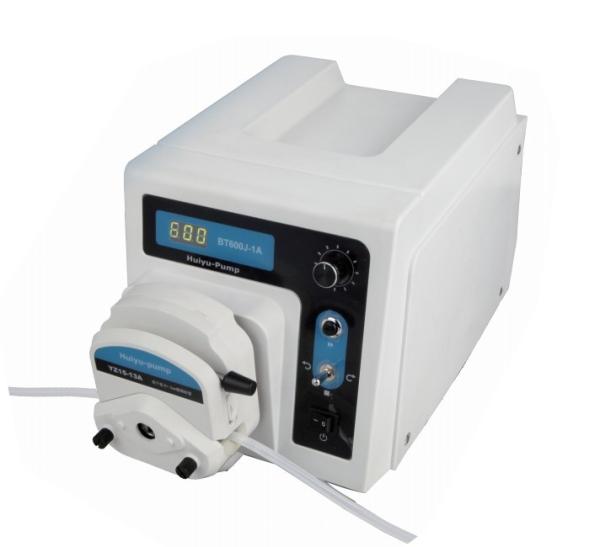

portable liquid transfer stepper motor peristaltic pump

  • 1
  • 2

Customized support : OEM

Brand Name : Huiyu fluid

Model Number : BT600J-1A

Place of Origin : Beijing, China

Application : Food and Beverage Industry, Pharmaceutical industry, Metering

Horsepower : 600rpm

Power Source : Electric

Pressure : 0.2MPA, Low Pressure

Structure : reciprocal

Voltage : AC90V-260V

Power : 100W, Electric

Standard or Nonstandard : Nonstandard

Theory : Reciprocating Pump

product : Beijing Huiyu 2280ml liquid Peristaltic Filling Pump

Certification : RoHS

Packaging Details : carton

Supply Ability : 100 Set/Sets per Week

Price : $350.00 - $600.00/sets

Contact Now

Beijing Huiyu 2280ml liquid Peristaltic Filling Pump

Product Description

portable liquid transfer stepper motor peristaltic pump

Technical parameter
Speed: 1 to 600 rpm, reversible
Speed resolution: 1 rpm
Speed control: rotary encoder switch, acceptable external control and communication control
Display: 3-digit LED displays current speed
Analog interface: Start/stop and cw/ccw control, 0 to 5 V, 0 to 10 V, 4 to 20 mA and 0 to 10 KHz speed control
Communication interface: RS485
Memory function: Storing the running parameters automatically
Prime button for fast filling and emptying
Dimensions (L×W×H): 285×207×180 (mm)
Power supply: AC 90V-260V/100W
Operating condition: Temperature 0 to 40℃ Relative humidity < 80%
IP rating: IP 31
Drive weight: 3.8 kg

Technical Data Sheet

Pump head Pump head model Available tubing flow rate range (ml/min)
YZ15-l3A 13#, 14#, 19#, 16#, 25#, 17#, 18# wall thickness:1.5mm 0.07-2200ml/min
YZ25-l3A 15#, 24# wall thickness:2.5mm 1.7-1600ml/min
BZ25-lA 24# wall thickness:2.5mm 2.9-1600ml/min

Suitable pump head

portable liquid transfer stepper motor peristaltic pump

OEM option

portable liquid transfer stepper motor peristaltic pump

Accessories

portable liquid transfer stepper motor peristaltic pump

CE certificate

portable liquid transfer stepper motor peristaltic pump
