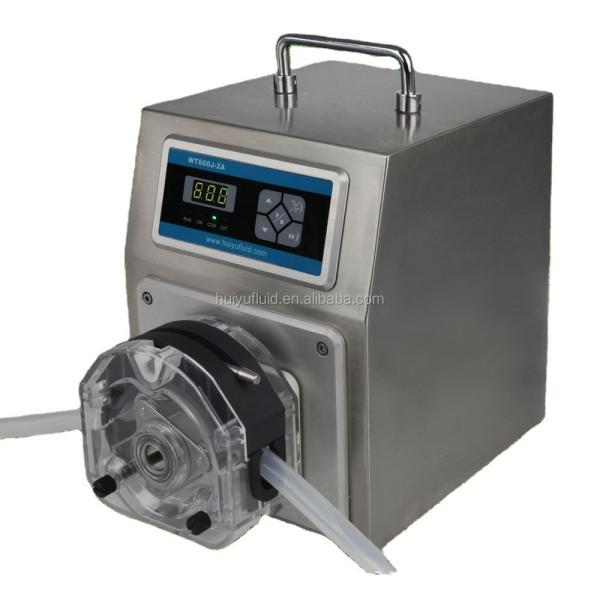

6l/min stainless steel housing peristaltic pump

Name: 6lmin stainless steel housing peristaltic pump
Brand: Huiyu fluid
Price: 950.00 USD

Quality 6l/min stainless steel housing peristaltic pump wholesale

Warranty : 1 year

Customized support : OEM

Brand Name : Huiyu fluid

Model Number : WT600J-2A

Place of Origin : Beijing, China

Application : Drinking water treatment, Pharmaceutical industry, Water Treatment Solutions

Power Source : Electric

Pressure : Low Pressure

Structure : Peristaltic Pump

Cable Length : 1.5m

Outlet Size : 9.6mm

Voltage : 220v

Power : 400w

motor : DC brushless motor

product : 6l/min stainless steel housing peristaltic pump

Brand : Huiyu

Max flow rate : 6000ml/min

power supply : AC 220V ±20%

motor speed : 60-600rpm

dimension(LxWxH) : 250*190*255(mm)

Drive weight : 8kg

Packaging Details : 1 peristaltic pump in 1 carton , with foam plastic

Port : Beijing

Supply Ability : 100 Set/Sets per Week

Price : $950.00/sets >=1 sets

Contact Now

6l/min peristaltic pump

Product Description

6l/min stainless steel housing peristaltic pump

Technical parameter

Speed range: 60-600rpm
Precision:±1.0%
Resolution: 1.0 rpm
Output torque:1.50Nm
Display:3 LTD Display current speed. 4 LTD indicate working condition separately.
Memory Function: can keep the running Parameters automatically.
External control function: 0.5-5V/1-10V/4-20mA/1-10KHz,can select 60-600rpm.
Communication interface: RS485
Power: AC 220V±20% 50Hz/60Hz
Power consumption: ≤190W
Working condition: Working condition temperature: 0℃-40℃
Relative Humidity<80%
Dimension (L*W*H): 250*190*255(mm)
IP Grade: IP55
Weight of Driver: 8kg

Pump head	Model	Available tubing	Max single channel flow rate range(ml/min)
	YZ15-13A (1-4 channels)	13#,14#,19#,16#,25#,17#,18#	2200
	YZ25-13A (1-4channels)	15#,24#	1600
	KZ25 (1channels)	15#,24#,35#,36#	6000

CE certificate

6l/min stainless steel housing peristaltic pump
