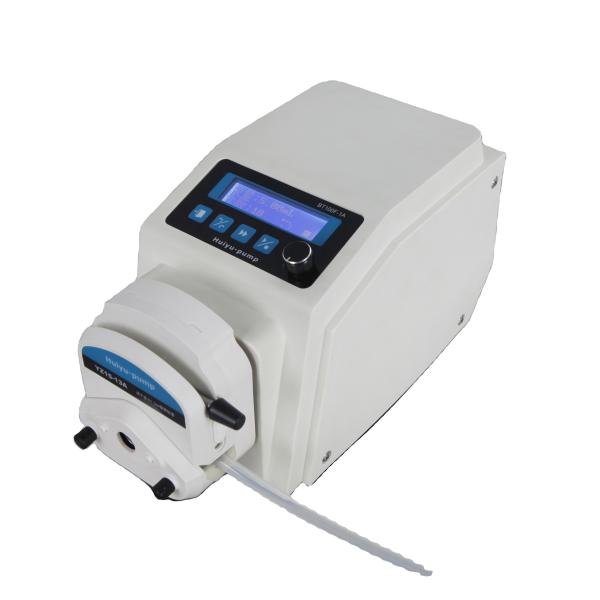

semi automatic bench-top liquid dispensing peristaltic pump

Name: semi automatic benchtop liquid dispensing peristaltic pump
Brand: Huiyu
Price: 355.00 USD

Quality semi automatic bench-top liquid dispensing peristaltic pump wholesale

Warranty : 1 year

Customized support : OEM

Brand Name : Huiyu

Model Number : BT100F-1A

Place of Origin : Beijing, China

Application : Food and Beverage Industry, Pharmaceutical industry, wastewater treatment

Horsepower : 0.05

Power Source : Electric

Pressure : Low Pressure, 0.2mpa 2bar

Structure : Peristaltic Pump

Outlet Size : 6.4mm

Voltage : 110v 220v

Power : 40w

motor : stepper motor

product : semi automatic benchtop liquid dispensing pump

Brand : Huiyu

flow rate : 0.07-380ml/min

power supply : AC 220V ±20%

motor speed : 0.1-100rpm

dimension(LxWxH) : 243X151X157 (mm)

Drive weight : 3.5 kg

Usage : water,fluid,reagent,oil,detergent

Fuel : electricity

Packaging Details : semi automatic benchtop liquid dispensing pump
with foam plastic

Port : Beijing,Tianjin,Qingdao

Supply Ability : 100 Set/Sets per Week

Price : $355.00/sets >=1 sets

Contact Now

dispensing peristaltic pump

Product Description

semi automatic bench-top liquid dispensing peristaltic pump

Max flow rate:380ml/min

Technical parameter
Speed: 0.1-100 rpm, reversible
Speed precision: 0.1 rpm
Dispensing volume: 0.01mL to 9.99L
Copy number: 1 to 9999, 0 means unlimited cycle.
Pause time : 0.1sec to 99.9 min
Speed control: membrane keypad and rotary encoded switch
External control: 0 - 5V , 0 - 10V , 4 - 20 mA , 0 - 10KHz optional
communication control: RS485
Output signal: start/stop, direction output and speed, OC gate output mode
Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
Dimensions (L × W × H): 243×151×157 (mm)
Power: 90-260V AC,50/60Hz
Power consumption: < 40W
Drive Weight: 3.5 kg
IP rating: IP 31

operation video link on Youtube for refernce:

https://youtu.be/y6sA2m8JKAE

Technical Data Sheet

Pump head	model	Available tubing	flow rate range (ml/min)
	YZ15-1A	13#,14#,19#,16#,25#,17#,18# wall thickness 1.5mm	0.07-380ml/min
	YZ25-1A	15#,24# wall thickness 2.5mm	0.2-270ml/min
	DG-1A	ID≤3.17mm; wall thickness 0.8-1.0mm; A Refers to 6 rollers; B refers to 10 rollers	0.00025-48ml/min
	DG-1B		0.0002-32ml/min
	DG-2A		0.00025-48ml/min Single channel
	DG-2B		0.0002-32ml/min Single channel
	DG-4A		0.00025-48ml/min Single channel
	DG-4B		0.0002-32ml/min Single channel

semi automatic bench-top liquid dispensing peristaltic pump

Best selling standard perisaltic pump BT100J+YZ15

Click the photo for technical details

semi automatic bench-top liquid dispensing peristaltic pump

Industrial perisaltic pump BT600J+YZ35

Click the photo for technical details

Laboratory syringe pump LST01-1A

click the photo for technical details

Micro plunger pump

click the photo for technical details

Packaging & Shipping

semi automatic bench-top liquid dispensing peristaltic pump

Special designed carton and foam plastic cushion

Professional bundling machine ensure safe delivery to customers directly .

These precise instruments are mainly delivered by Express like DHL FedEx etc.

Suitable pump head

semi automatic bench-top liquid dispensing peristaltic pump

OEM option

semi automatic bench-top liquid dispensing peristaltic pump

Accessories

semi automatic bench-top liquid dispensing peristaltic pump

CE certificate

semi automatic bench-top liquid dispensing peristaltic pump
