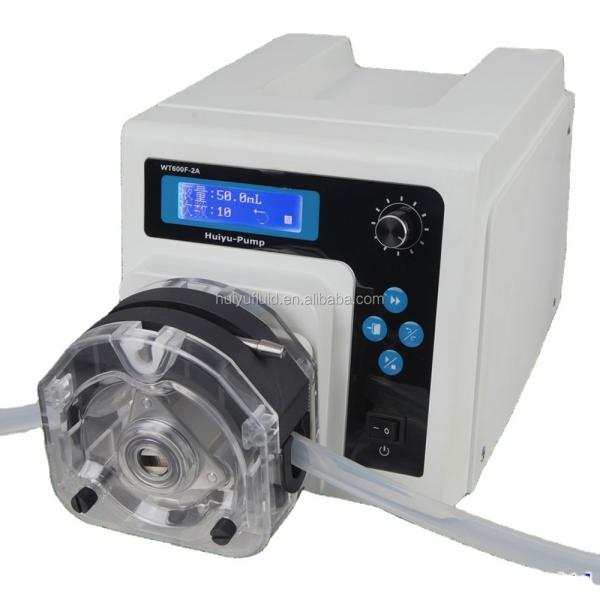

Food and beverage filling peristaltic pump

Name: Food and beverage filling peristaltic pump
Brand: Huiyu
Price: 850.00 USD

Quality Food and beverage filling peristaltic pump wholesale

Warranty : 1 year

Customized support : OEM

Brand Name : Huiyu

Model Number : WT600F-2A

Place of Origin : Beijing, China

Application : Food and Beverage Industry, Pharmaceutical industry, wastewater treatment

Power Source : Electric

Pressure : Low Pressure

Structure : Peristaltic Pump

Voltage : 110v 200v

product : Food and beverage filling peristaltic pump

Brand : Huiyu

flow rate : 0.7-6000ml/min

power supply : AC 90V-260V/40W

motor speed : 10-600 rpm

dimension(LxWxH) : 285 X207 X 180 (mm)

Drive weight : 5.2 kg

Usage : water,fluid,reagent,oil,detergent

pressure : 0.2mpa 2bar 30psi

Packaging Details : 1 peristaltic pump in 1 carton , with foam plastic

Port : Beijing,Tianjin,Qingdao

Supply Ability : 100 Set/Sets per Week

Price : $850.00 - $1,780.00/sets

Contact Now

Food and beverage filling peristaltic pump

Product Description

Food and beverage filling peristaltic pump

Technical paremeter
Speed : 10-600 rpm, reversible
Speed precision: 1 rpm
Speed control: toggle switch and rotary encoded switch, accept external control and communication control
Display: LCD
Dispensing volume: 0.1 mL to 99.9 L
Calibration function: The flow rates and the dispensing volume can be calibrated to increase the accuracy
Copy number: 1 to 9999 , 0 means unlimited cycle
Pause time : 0.1 s to 99 min
External control: start/stop control, direction control, speed control (0 - 5V ,0 -10V , 4 - 20 mA , 0 - 10KHz optional )
running mode signal output: 166.7Hz-10kHz
corresponding10rpm-600rpm
Start and stop status signal output: OC gate signal output
Direction status signal output: OC gate signal output
Communication interface: RS 485
Memory function: repower the pump, user can choose whether to continue in accordance with the state before the power-down
Prime button for fast filling and emptying
Power: AC 90V-260V/40W
Operating condition: Temperature 0 to 40°C, relative humidity < 80%
Dimensions (L × W × H): 285 × 207 × 180 (mm)
IP rating: IP 31
Drive weight: 5.2 kg

Technical parameters

Pump head Picture	Pump head model	Available tubing	flow rate range (ml/min)
	YZ15-1A	13#,14#,19#,16#,25#,17#,18# wall thickness 1.5mm	0.7-2200ml/min
	2* YZ15-1A	13#,14#,19#,16#,25#,17#,18# wall thickness 1.5mm	single channel 0.7-2200ml/min
	YZ25-1A	15#,24# wall thickness 2.5mm	17-1600ml/min
	2* YZ25-1A	15#,24# wall thickness 2.5mm	single channel 17-1600ml/min
	BZ25-1A	24# wall thickness 2.5mm	29-1600ml/min
	KZ25	15#,24#,35#,36#	34-6000ml/min

Food and beverage filling peristaltic pump

photo of the screen

Food and beverage filling peristaltic pump

OEM option

Food and beverage filling peristaltic pump

Accessories

Food and beverage filling peristaltic pump

CE certificate

Food and beverage filling peristaltic pump
